Guillotine Shearing Machine
Guillotine Shearing Machine

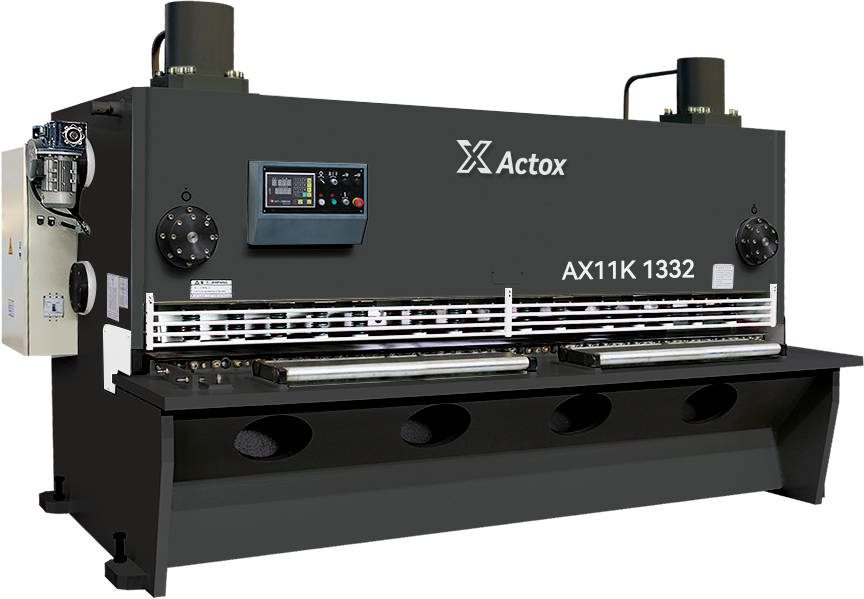

1.Model: AX11K Series
2.Control system : E21/DA41T/P40T/DAC360T
3.Capacity : 1-30 mm (optional)
4.Cutting length 1600-10000mm (optional)
5.Cutting blades four sides

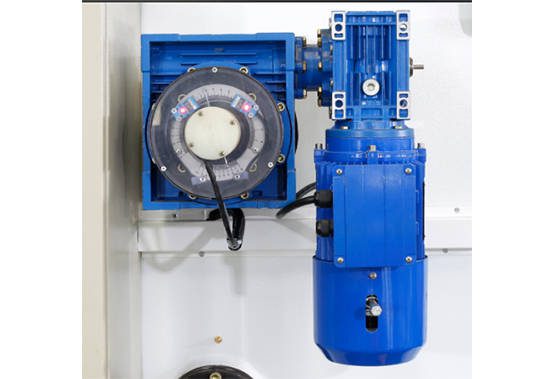

6.Adjust blade gap and cutting angles
FEA & Stress Analysis

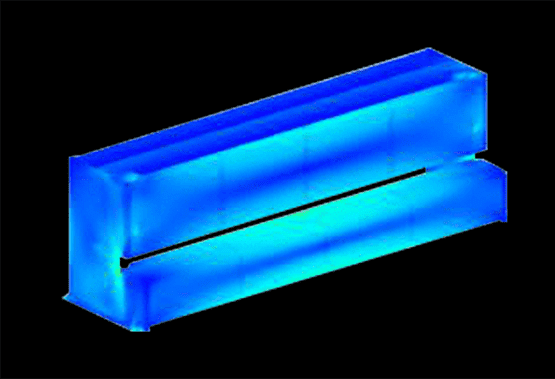

CAE software and SOLIDWORKS are used to analyze the linear static structure, stress and deformation of the press brake and laser cutting machine frames. Therefore, for complex structures, highly complex loads, transient modeling and the combination of the above two.

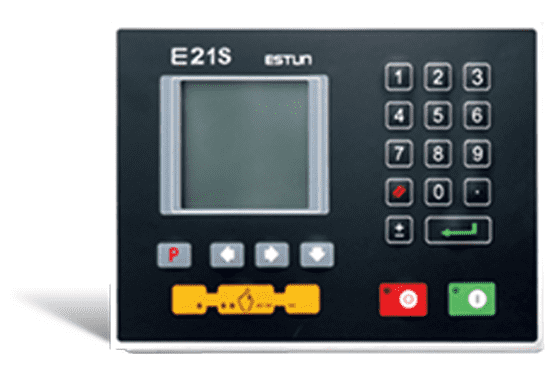

NC Control System ESTUN E21S Control
High-definition hydraulic display
Control common motors and frequency converters
X-axis intelligent positioning
Multi-step programming, 40 programs, each program 25 steps
Built-in time relay function
Chinese and English
Metric system
Hydraulic System

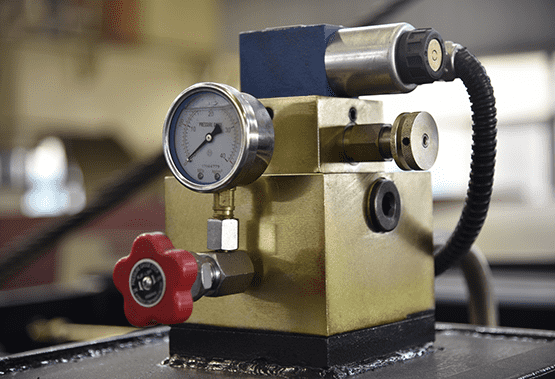

High-quality hydraulic valves such as Rexroth, these valves can withstand high pressure, are durable, and require minimal maintenance.
It can ensure that the machine can complete the activities of fast descent, slow descent, bending at working speed, fast return and plunger emergency stop.
The machine can work continuously under rated load, the hydraulic system maintains stability and precision, and is completely leak-free
Main Motor

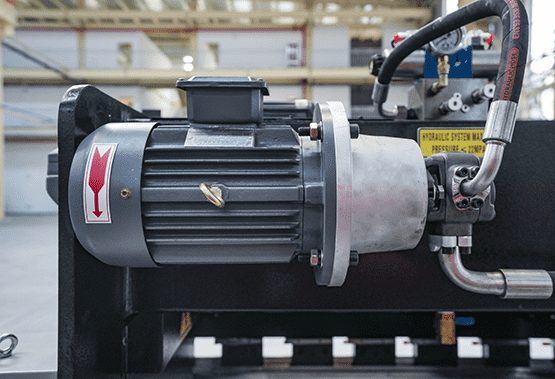

The main motors have the characteristics of high efficiency and energy saving, large starting torque, excellent performance, low noise, low vibration and high reliability. The power and installation dimensions of these motors meet IEC standards and are easy to use and maintain.
The power and voltage of the main motors can be customized according to the specific voltage requirements of the customer’s region.
Electrical Components

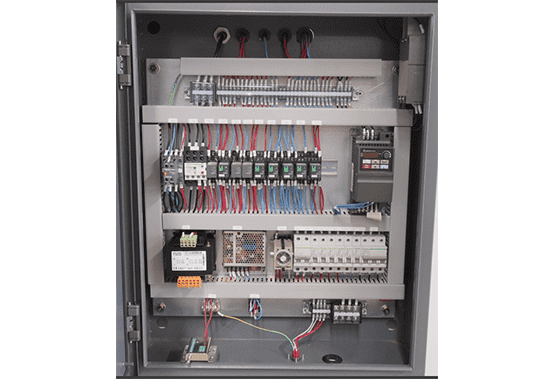

The electrical components are imported or Sino-foreign joint venture products, which meet international standards, are safe and reliable, have a long service life, and have strong anti-interference ability. The electrical cabinet is equipped with a heat dissipation device.
Principle Drawing

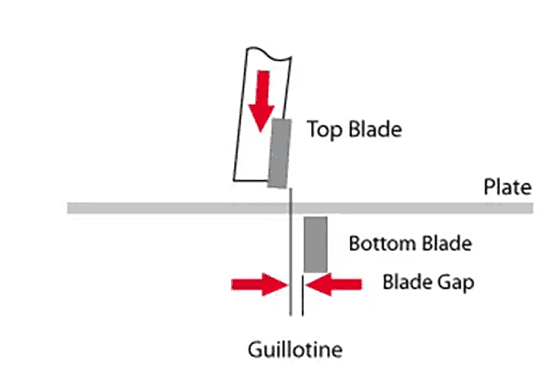

The blade of a guillotine shear moves up and down in a vertical straight line motion relative to the lower blade, ensuring minimal distortion and higher straightness accuracy, achieving twice the precision of swing beam shearing machines.
Guillotine shears have a wider range of applications and are suitable for industries such as automotive, tractor, locomotive, shipbuilding, electrical machinery, and instruments. They are also suitable for stretching various high-strength alloy plates.
Guillotine shears can adjust the angle by quickly changing the oil volume in the hydraulic cylinder, resulting in increased shearing angle for thicker materials and faster shearing speed for higher efficiency, effectively reducing the bending of the plates.
