Swing Beam Shearing Machine
Swing Beam Shearing Machine

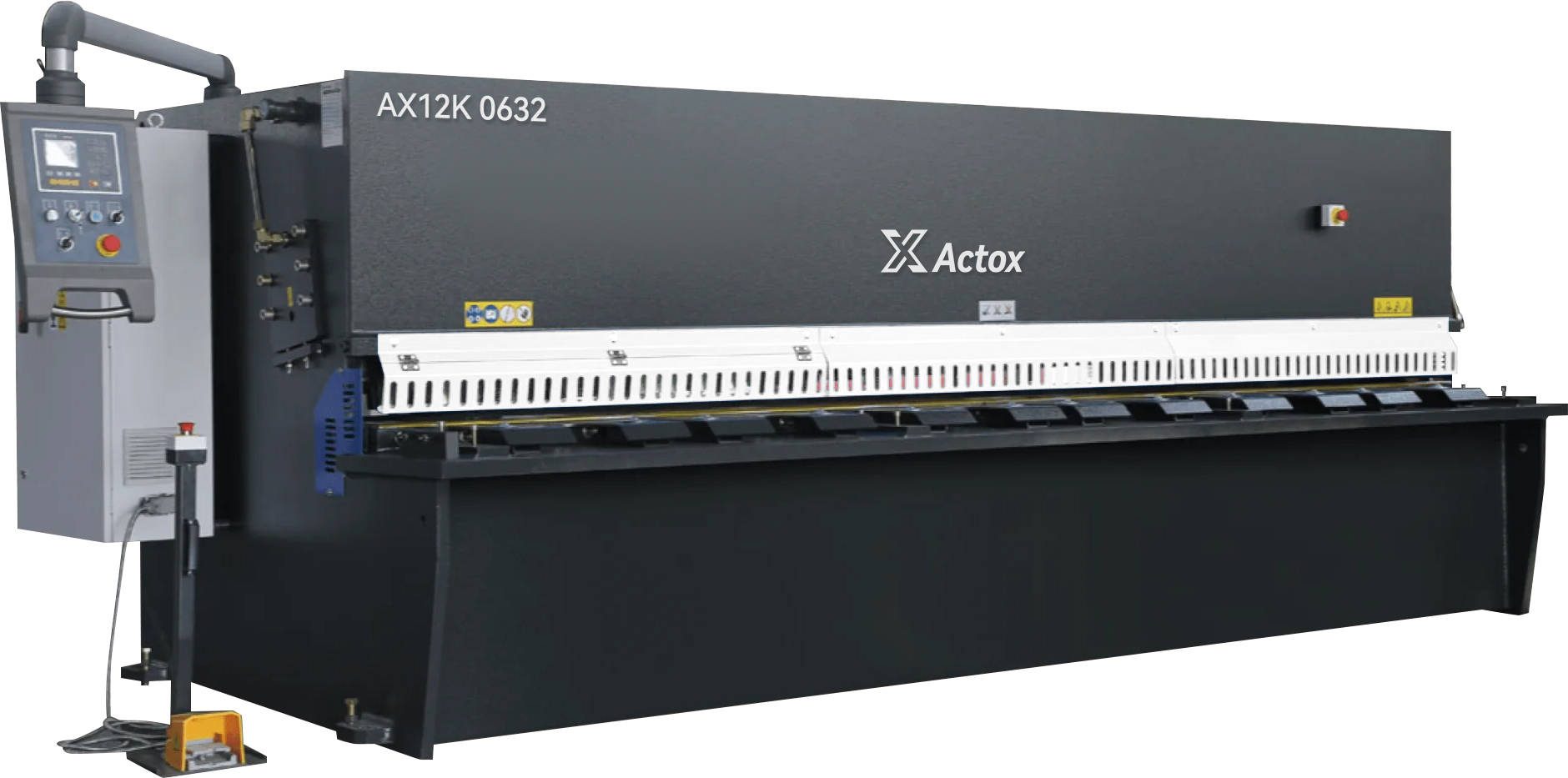

1.Model: AX12K Series
2.Control system : E21/DA41T/P40/DAC310T
3.Capacity : 1-30mm (optional)
4.Cutting length 1600-10000mm (optional)
5.Cutting blades two sides
6.Adjust the blade gap

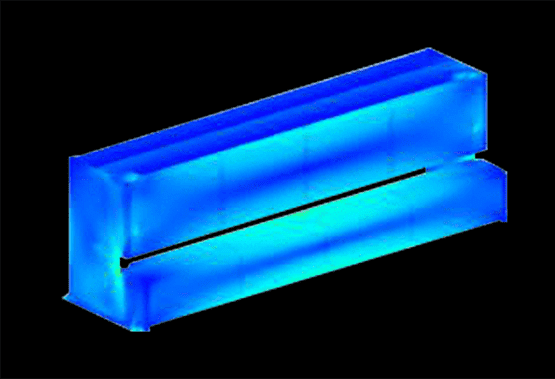

FEA & Stress Analysis
CAE software and SOLIDWORKS are used to analyze the linear static structure, stress and deformation of the press brake and laser cutting machine frames. Therefore, for complex structures, highly complex loads, transient modeling and the combination of the above two.

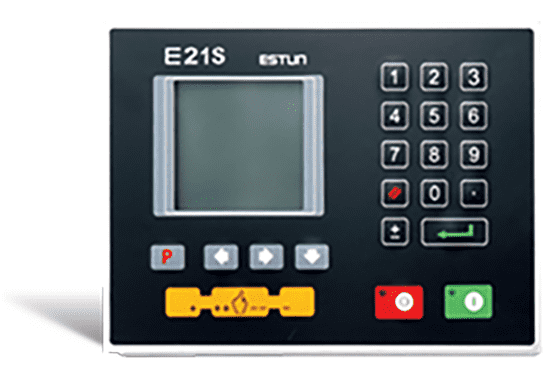

NC Control System ESTUN E21S Control
High-definition hydraulic display
Control common motors and frequency converters
X-axis intelligent positioning
Multi-step programming, 40 programs, each program 25 steps
Built-in time relay function
Chinese and English
Metric system

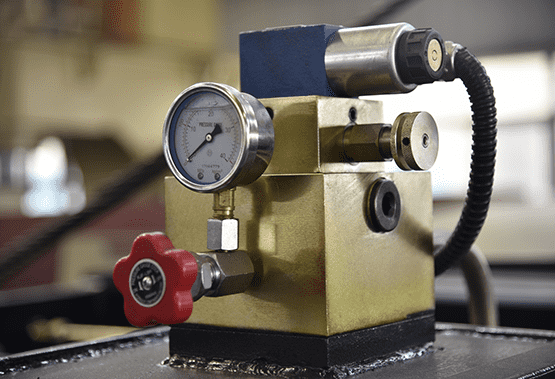

Hydraulic System
High-quality hydraulic valves such as Rexroth, these valves can withstand high pressure, are durable, and require minimal maintenance.
It can ensure that the machine can complete the activities of fast descent, slow descent, bending at working speed, fast return and plunger emergency stop.
The machine can work continuously under rated load, the hydraulic system maintains stability and precision, and is completely leak-free

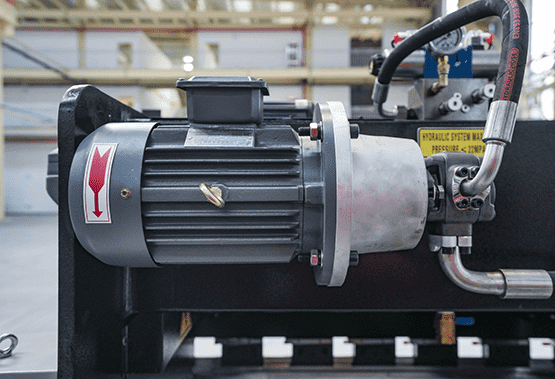

Main Motor
The main motors have the characteristics of high efficiency and energy saving, large starting torque, excellent performance, low noise, low vibration and high reliability. The power and installation dimensions of these motors meet IEC standards and are easy to use and maintain.
The power and voltage of the main motors can be customized according to the specific voltage requirements of the customer’s region.

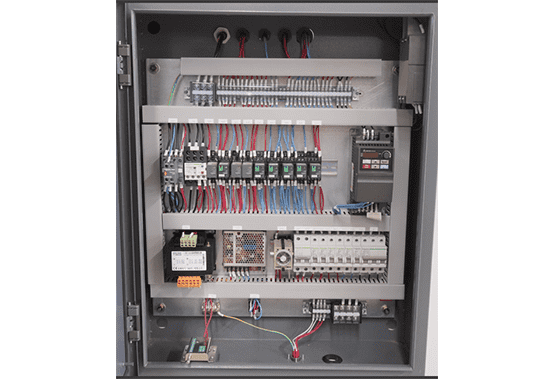

Electrical Components
The electrical components are imported or Sino-foreign joint venture products, which meet international standards, are safe and reliable, have a long service life, and have strong anti-interference ability. The electrical cabinet is equipped with a heat dissipation device.

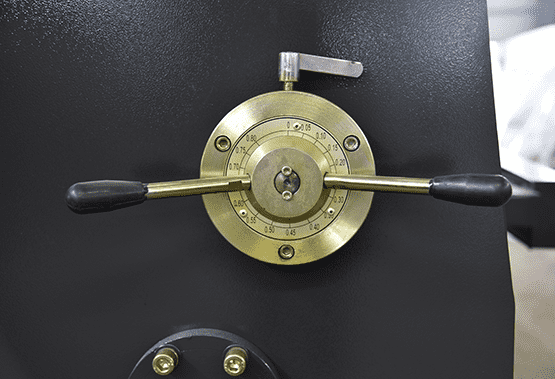

Fast blade gap adjustment device
Simple and efficient manual adjustment style,to reach blade gap step less adjustment.

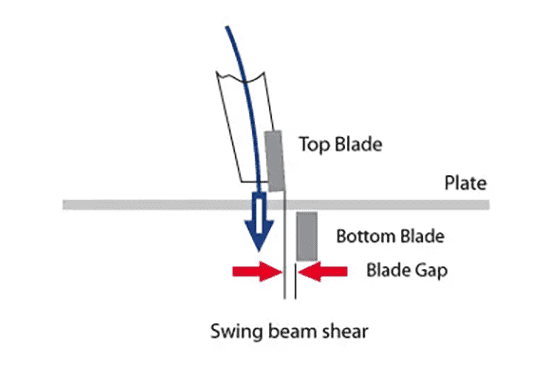

Principle Drawing
The Swing Beam Shearing machine has an arc-shaped motion, where the swinging blade contacts the material to ensure straightness.
Swing beam shearing machines are used in industries such as power generation and aviation for processes such as stretching, bending, extrusion, and forming of metal sheets.
The blade angle of a swing beam shearing machine is fixed, and the shearing speed cannot be adjusted.
