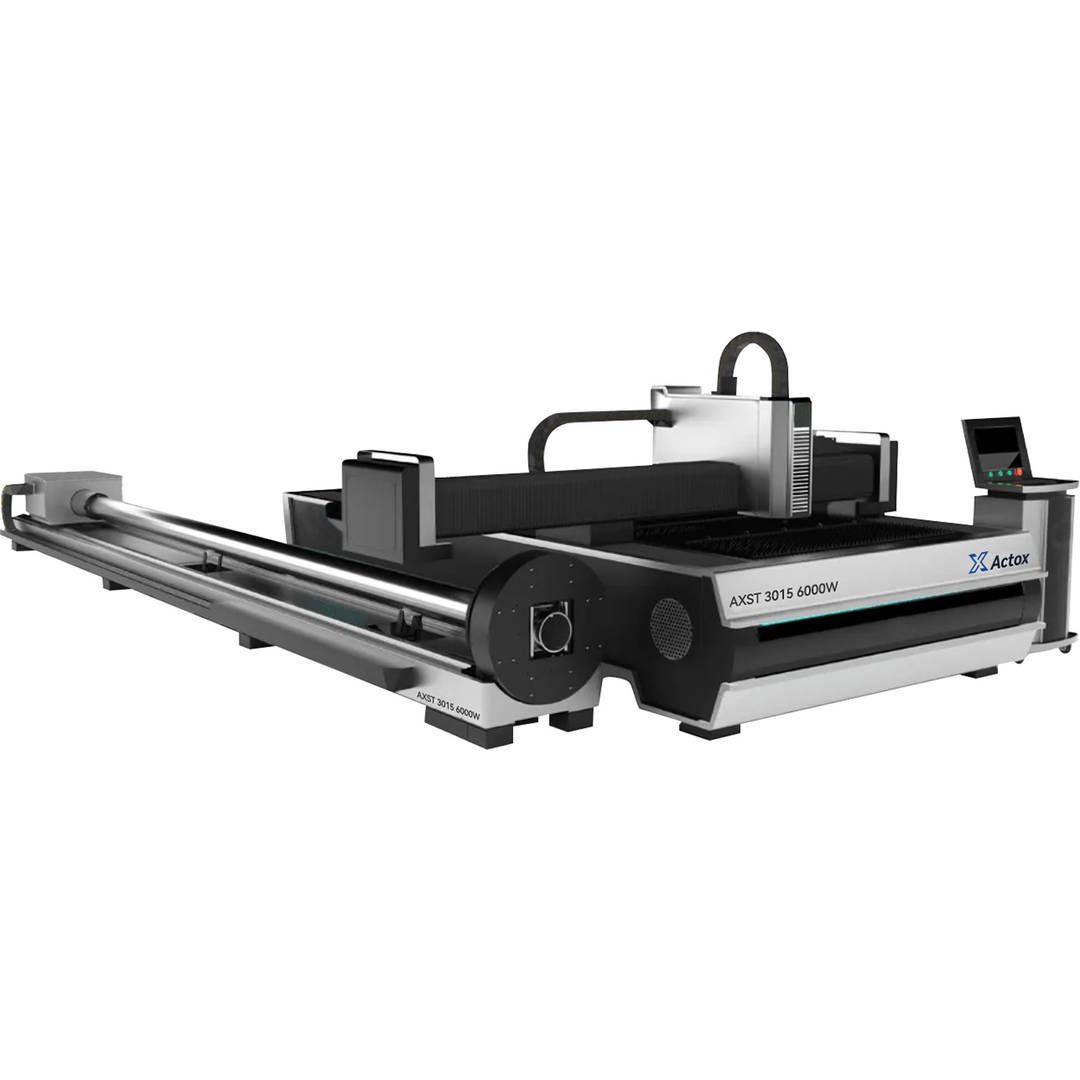

Open Type Tube and Sheet combo Fiber Laser Cutting Machine
Open Type Tube and Sheet combo Fiber Laser Cutting Machine
1.Model: AXST Series
2.Laser source optional : Raycus/Max/IPG/N-Light
3.Laser Source power : 1000W-60000W
4.Worktable size: 3015/4015/4020/6015/6020/8025/13025
5.Water chiller : Hanli
6.Laser cutting head : Raytools /WSX/ BOCI

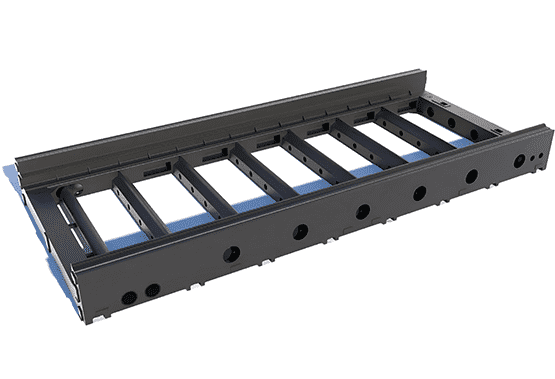

Strong Machine Bed
The laser machine bed adopts a welded rectangular tube design with internal reinforcement ribs, high strength, high tensile strength and good guide rail stability. This design effectively prevents the bed from deforming, ensuring improved tensile strength and stability.
The bed adopts a 600℃ stress relief annealing process, and the structure is rigid.
Small deformation | Small vibration | High precision

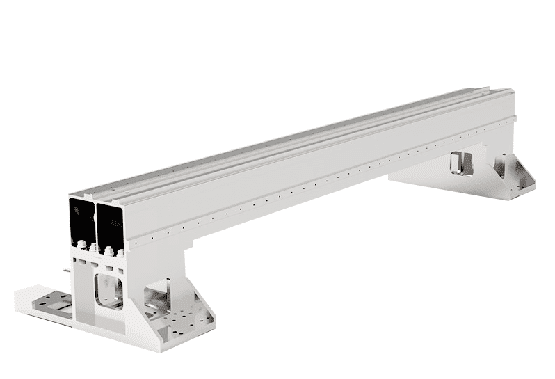

High-Strength Aviation Aluminum Beam
Using the latest extruded aviation aluminum profiles, the strength can reach extremely high after aging treatment. It has the advantages of good toughness, light weight, corrosion resistance, oxidation resistance, and fast processing speed.

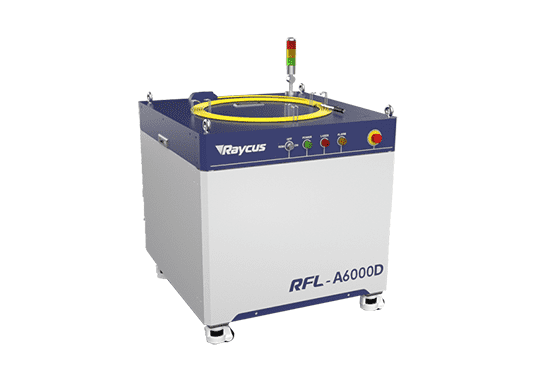

Laser Source
We use fiber laser sources including well-known brands such as Raycus (China), Max (China) and IPG (Germany), with power ranging from 1000W to 60,000W.
They adopt water cooling and modular design, the system is highly integrated, maintenance-free, high reliability, high energy density, high beam quality, longer service life, and maintenance-free operation of laser cutting. In addition, the electro-optical conversion efficiency of this light source exceeds 30%.

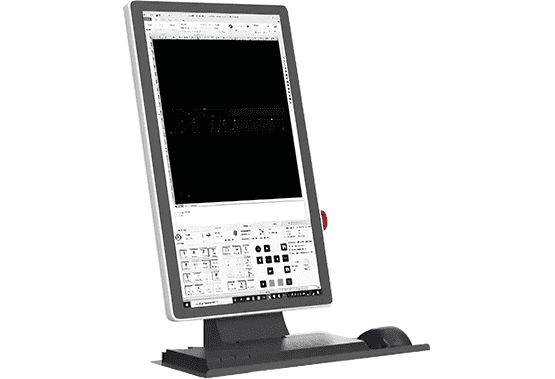

Intelligent CNC System
Cypcut cutting software is easy to install, simple to debug and has excellent performance. It also supports speed adjustment based on power, providing users with additional flexibility. Even a novice can operate it easily. It supports a variety of graphic files, including DXF, PLT, DWG, AI, G-code, IGS (tube cutting). It is also compatible with other nesting software

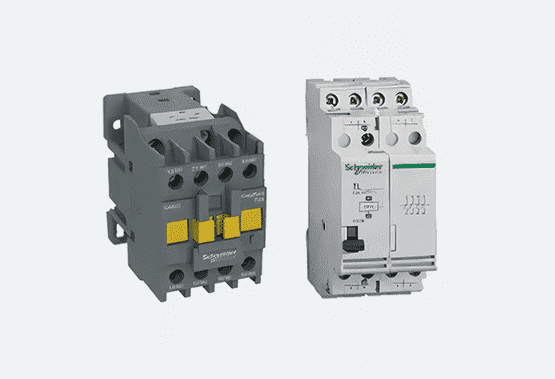

Electrical Components
The electrical components are imported or Sino-foreign joint venture products, which meet international standards, are safe and reliable, have a long service life, and have strong anti-interference ability. The electrical cabinet is equipped with a heat dissipation device.

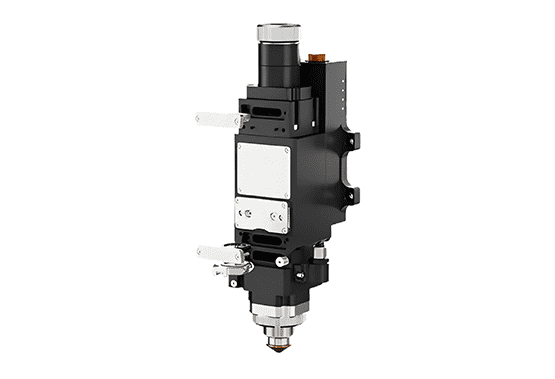

Cutting Head
Bochu intelligent cutting head is a highly cost-effective laser cutting intelligent cutting head. It is not only small in size and light in weight, but also integrates multiple sets of intelligent sensors for real-time closed-loop monitoring, rapid diagnosis, and instant alarm.
The autofocus laser cutting head can automatically adjust the focal length according to the thickness of the processed material, which is suitable for processing sections of different thicknesses, shortening the cutting time and improving the cutting quality.
The patented anti-collision protection structure of the cutting head, combined with the waste cutting micro-connection, prevents the warping of the plate and achieves high-speed and stable cutting.

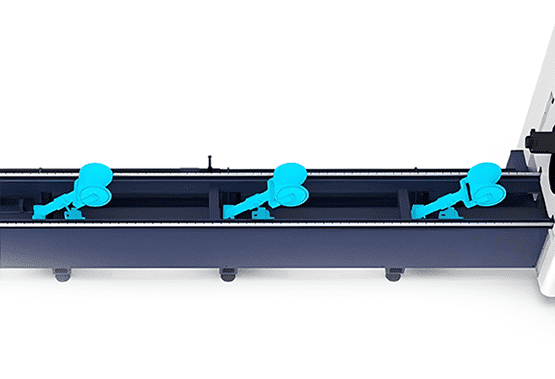

Pneumatic roller support
This device can fix the pipe and effectively solve the deformation problem in long-line cutting operations

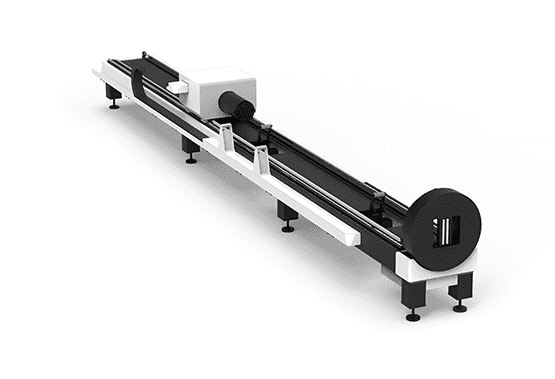

Double pneumatic chuck
2~3 times faster than traditional electric chuck
Using 2 rows of rollers, it has a wide clamping range and high cutting accuracy, suitable for various profiles.
