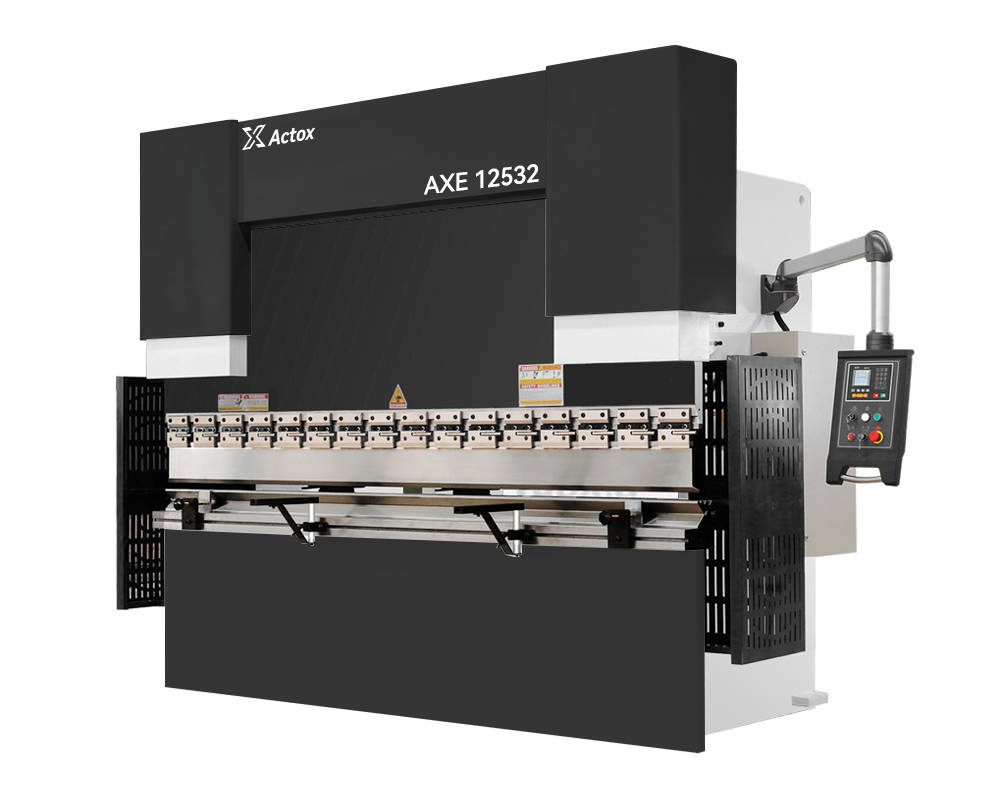

Torsion-sync Smart NC Press Brake
Torsion-sync Smart NC Press Brake
1.Model: AXE Series
2.Optional economical CNC system E200P/ E310PS/ DA41T/CT8
3.Bending angle input
4.Tosion Bar Structure ,optional R axis and auto crowing system
5.Auto CNC operation
6.Servo motor control for high bending accuracy
7.Capacity 30Ton-600Ton
FEA & Stress Analysis

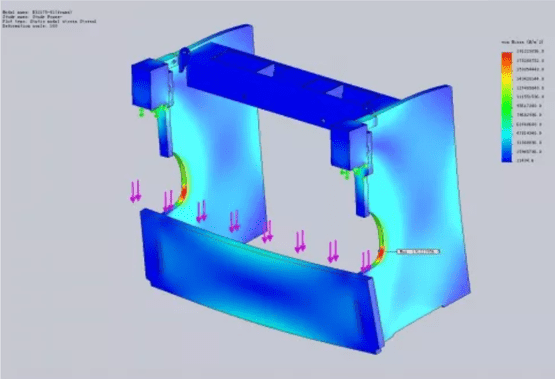

CAE software and SOLIDWORKS are used to analyze the linear static structure, stress and deformation of the press brake and laser cutting machine frames. Therefore, for complex structures, highly complex loads, transient modeling and the combination of the above two.
NC Control System

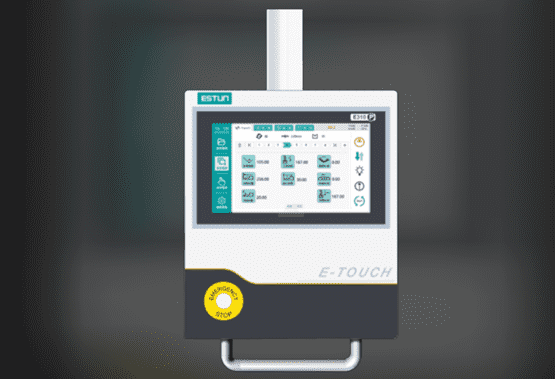

ESTUN E310P Controller
4 axes are supported, viz, X-axis, Y-axis, R-axis and C-axis.
The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters.
The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
Optional hydraulic or mechanical to control the V-axis.
Hydraulic System

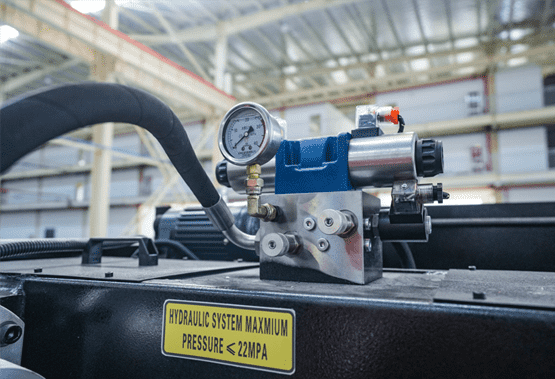

High-quality hydraulic valves such as Rexroth, these valves can withstand high pressure, are durable, and require minimal maintenance.
It can ensure that the machine can complete the activities of fast descent, slow descent, bending at working speed, fast return and plunger emergency stop.
The machine can work continuously under rated load, the hydraulic system maintains stability and precision, and is completely leak-free
Main Motor

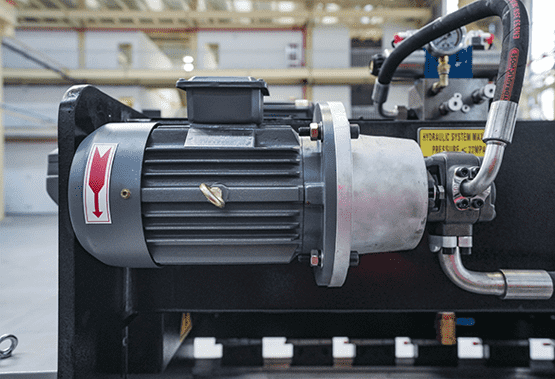

The main motors have the characteristics of high efficiency and energy saving, large starting torque, excellent performance, low noise, low vibration and high reliability. The power and installation dimensions of these motors meet IEC standards and are easy to use and maintain.
The power and voltage of the main motors can be customized according to the specific voltage requirements of the customer’s region.
Torsion-sync Bar

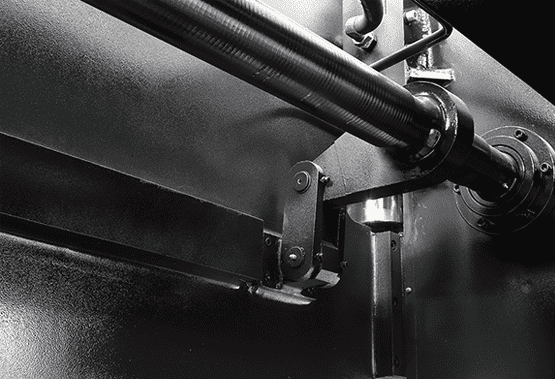

The torsion axis synchronization principle controls the slider to move up and down for bending
Electrical Components

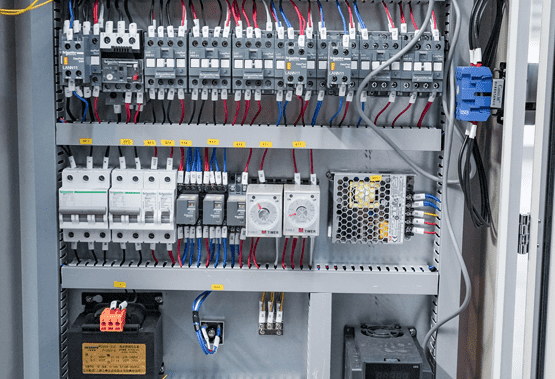

The electrical components are imported or Sino-foreign joint venture products, which meet international standards, are safe and reliable, have a long service life, and have strong anti-interference ability. The electrical cabinet is equipped with a heat dissipation device.
Stable And Reliable Backgauge

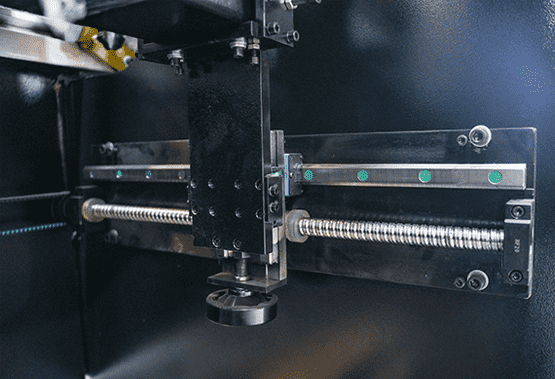

The high-precision back gauge assembly is developed and produced by our company. It is equipped with a high-precision ball screw, adjustable back gauge finger, and manual lifting function, which can adapt to a variety of different molds and bending requirements.

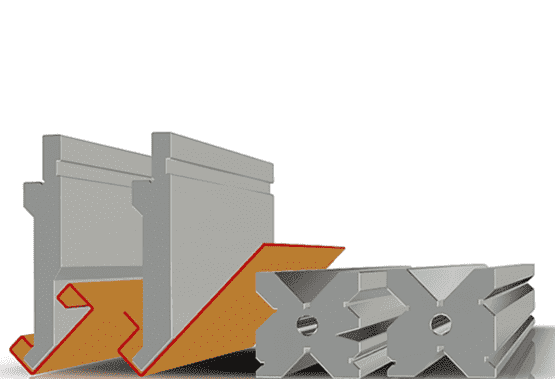

Punches & Dies
Punches and dies for hydraulic bending machines are one of the most important topics. Different punch and die combinations can complete bending of any shape. We can design and produce suitable punches and dies according to different bending requirements of customers.
